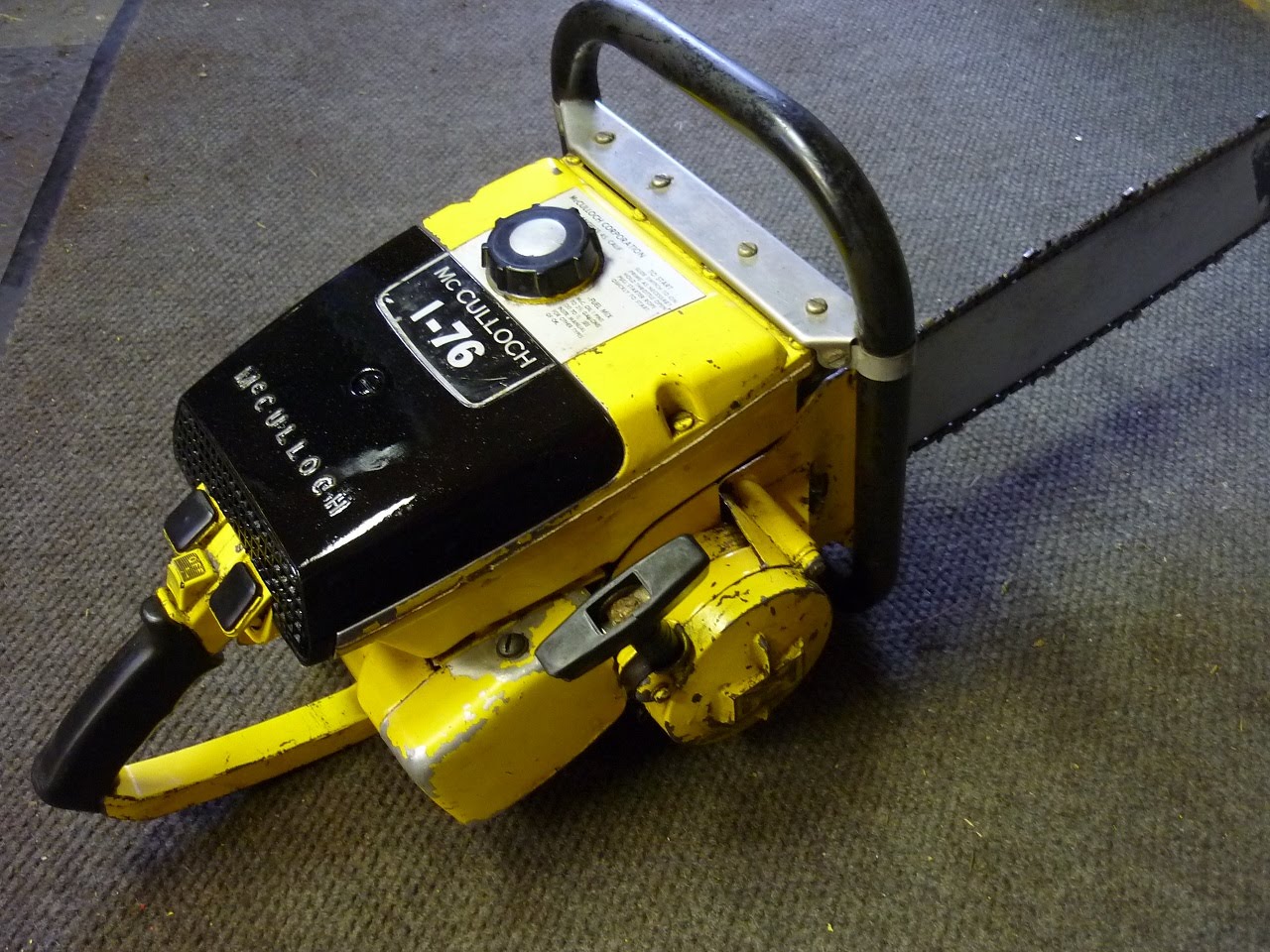

MANUFACTURED BY:McCULLOCH MOTORS CORP.LOS ANGELES, CALIFORNIA, U.S.A.
SERIES OR ASSEMBLY NUMBER:none
YEAR INTRODUCED:1962
YEAR DISCONTINUED:1963
ENGINE DISPLACEMENT:6.04 cu. in. (99 cc)
NUMBER OF CYLINDERS1
CYLINDER BORE:2.165 in. (54.9 mm)
PISTON STROKE:1.635 in. (41.5 mm)
CYLINDER TYPE:Aluminum with cast iron sleeve
INTAKE METHOD:Reed valves with third port induction system
MANUFACTURER ADVERTISED H.P.:not advertised
WEIGHT :21 Lbs. (9.5 kg) powerhead only
OPERATOR CONFIGURATION:One Man operation
HANDLEBAR SYSTEM:Rigid
CHAIN BRAKE:none
CLUTCH:Centrifugal
DRIVE TYPE:Direct
CONSTRUCTION:Die cast magnesium
MAGNETO TYPE:McCulloch
CARBURETOR:McCulloch FLAT BACK.
MAJOR REPAIR KIT:
MINOR REPAIR KIT:
AIR FILTER SYSTEM:Flocked wire screen
STARTER TYPE:McCulloch automatic rewind
OIL PUMP:Manual
OPERATING RPM:
IGNITION TIMING:25 degrees before TDC
BREAKER POINT SETTING:Just breaking with timing pin in position
FLYWHEEL/COIL AIR GAP:0.010 in. (0.25 mm)
SPARK PLUG TYPE:Champion J8J, Autolite A7X, AC M45
SPARK PLUG GAP:0.025 in. (0.63 mm)
CRANKSHAFT MAIN BEARINGS:Ball
FUEL TANK CAPACITY:55 oz. (1625 ml)
FUEL OIL RATIO:20:1
RECOMMENDED FUEL OCTANE:Regular
MIX OIL SPECIFICATION:McCulloch two-stroke chain saw mix oil
CHAIN PITCH:.404 in.
CHAIN TYPE:McCulloch Super Pintail
BAR MOUNT PATTERN:
SHORTEST GUIDE BAR SUPPLIED:16 in. (40cm)
LONGEST GUIDE BAR SUPPLIED:36 in. (91cm)
COLOUR SCHEME:McCulloch Yellow enamel with Black air filter cover
