MOTOR UNION MP50 Czech 2 Man army Saw.

FABRICATED BY: MOTOR UNION, KAPLICE, CZECHOSLOVAKIA.
MODEL: BD-1S68-A (RP50)
Made in ČSSR - type: BD 1S68-A- ; fabric mark - 06 ; production year - 1953; engine - one cylinder, capacity - 248 ccm, bore - 68 mm, stroke - 68 mm ; power - 5,5 hp; engine weight - 20,75 kg ; cutting the length and weight - 600 mm/17,25 kg; 800 mm/19,25 kg; 1000 mm/21,25 kg; tank capacity - 2,5 l ; max speed engine - 3800 rev/min

NOTE: A copy of the Stihl KS 43-BD1S

All these types of saws were gradually supplemented and then replaced relatively quickly two-man chainsaw MP-50506 domestic production. It belonged at that time still saw the MP-50 to the best saws in its category in Europe. It had a standing two-stroke single cylinder with a bore and a stroke of 68 mm, volume 248 cm3 and 5.5 hp (4 kW) at 3,800 rpm. It was equipped with a decompression valve for easier starting and stopping of the saw. The circumferential speed of the chain reached 7 m / s, the cutting joint was 8 mm wide. The saw had a gradient petrol tank, Jikov 2920 PS float carburetor, 2.5 l petrol tank, oil tank 0.5 l, automatic chain lubrication with gear pump. Together with a bar with a length of 600, 800 or 1,000 mm weighed 38, 40 and 42 kg, respectively. The cylinder was aluminum with a cast iron insert, gear the ratio between the motor and the chain was 3.2: 1 and the clutch was centrifugal. Starting flat the belt did not have automatic rewinding.

A saw equipped with a float carburetor could not be tilted, if necessary therefore, only the bar tilted. The design of the MP-50 allowed three positions of the bar: vertical for cross-sectional cuts; horizontal for felling; oblique for cutting jams (alternatively 30 ° or 45 ° from the horizontal). The cutting chains of the time were not adapted for oblique cutting, and so the saw had to be pushed into the oblique cut by force, so it was an unpopular execution oblique cuts necessary when creating a jam. Changing the position of the felling and cross-section bar was only possible with the chain standing, which complicated and delayed the work. This was one of the reasons why the trees up to 20 cm on the stump were felled without a jam, only the third member of the group pushed them in the direction of the fall of the poles. Trees with a thickness on the stump of 20–30 cm were cut after a previous horizontal cut with a saw instead of a jam, and for trees thicker than 30 cm on a stump, two cuts were made with a saw against the future main section, spaced vertically 3-4 cm. Sometimes the space between the notches protruded with an ax or thicker trees were felled with a jam made by an ax.

BALILLA SMS1000.

MANUFACTURED BY: PARONITTI PAROSA S.A, MILANO, ITALY.
HELPER HANDLE: FESTO
ADVERTIZED HP: 5 HP
CARBURATOR: AMAL VERGASE RB 22, FISHER,A.G., FRANKFURT A.M.OBERRAD
RPM: 2800
COLOR SCHEME: MILITARY GREEN

No technical info at this time. If you have any info that you would like to share...let me know
Study in progress.

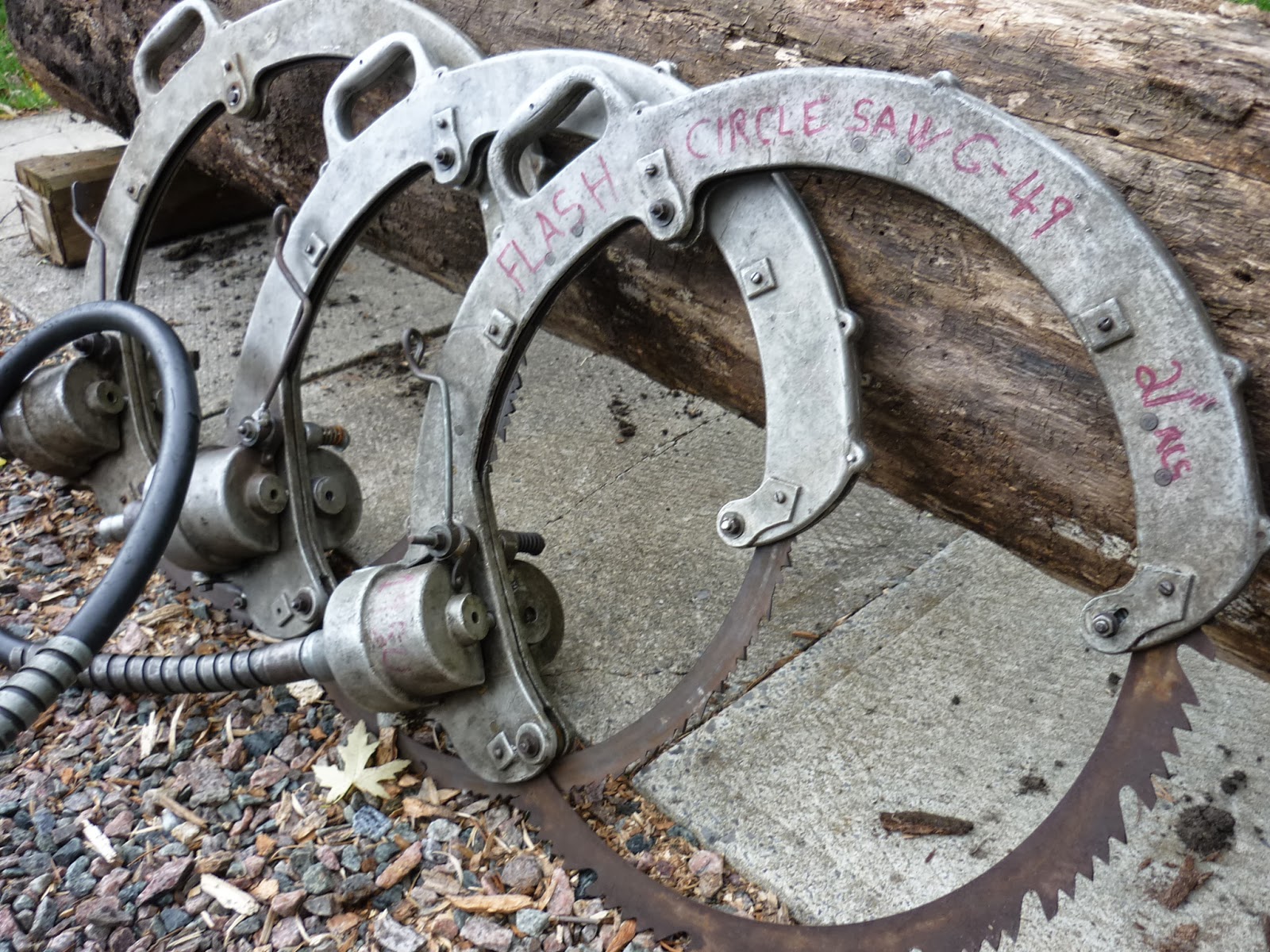

FLASH CIRCLE SAW G 49

MANUFACTURED BY:FLASH CIRCLE SAW ENRG. 95 ST-ROCH, QUEBEC,CANADA
SPECS:
INTRODUCED:1946
WEIGHT HAND CASING UNIT:13 LBS
PORTABLE: UNIT MOUNTED ON SKIS FOR EASY CARRYING
DRIVE:FLEXIBLE CIRCLE BLADE
DRIVE: 5 FEET LONG FLEXIBLE SHAFT WITH QUICK DISCONNECT
CASING:MADE FROM DURALIUM/MAGNESIUM
WEAR PROOF PHENOLITE CENTERING FIBRES
MAGNESIUM FRICTION ROLLERS NO GREASING
OPERATION: BLADE TURNS BETWEEN 2 ROLLERS WITH SPRING TENSION LEVER FOR QUICK STOP/GO.
CUT UP TO 21 INCHES
ENGINE: BRIGGS & STRATTON 4 CYCLE "N" TYPE ENGINE
POWER:7HP
RPM:700
STARTER: ROPE START
SPEED: GOVERNOR CONTROLLED
DRIVE SHAFT: MAGNUFACTURED BY (WYCO) WYZENBEEK & STAFF INC. CHICAGO, U.S.A.
OPTIONAL: DRIVE SHAFT UNIT CAN BE USED WITH EITHER THE 20 INCHES OR THE 30 INCHES HANDLE CASING.
ALSO AVAILLABLE WITH A "PACKSAC UNIT " WITH MODEL BB53...SAME FEATURES.
History from the WYCO web site:

In 1921 Andrew Wyzenbeek organized a group of engineers to form the Wyzenbeek & Staff Company, and by 1929 his company was fully dedicated to the production of flexible shaft machines and power tools for the industrial market. The flexible shaft with offset bearings was an innovative concept, and Wysenbeek utilized this principle in a number of products, from fish scalers to concrete vibrators. Wyzenbeek began the production of gas-powered vibrators in 1941. In 1962, Wyco, as the company became known, received a patent on its Square HeadTMvibrator design, the patent awarded for consolidation efficiency. The concept was further supported by conclusions of the IIT Research Institute (IITRI) of Chicago. In 1970, Wyco introduced the world's first hydraulic concrete vibrator for use on concrete paving equipment. In 1971, Wyco was purchased by Racine Federated Inc., a private manufacturing company under the leadership of John Erskine Sr. With the introduction of its high-cycle vibrator in 1975 and its pneumatic vibrator in 1977, Wyco developed a core family of internal concrete vibration products that continues to this day. The first portable gas vibrator was unveiled in 1981, and in 1986 Wyco introduced the first UL/CSA approved concrete vibrator, the first of its kind to meet OSHA standards. In 1994 the hydraulic concrete vibrator was dynamically redesigned to meet changing mix standards for the pavement industry. Wyco worked closely with specifying agencies to develop placement standards ultimately adopted for highway and runway construction. Wyco also introduced the smart vibrator system, a PC application for continuous vibrator monitoring on hydraulic pavers. In 2004, Wyco introduced the first full-powered adjustable speed high-cycle vibrator capable of meeting all placement requirements for bridge construction. 2010 was an innovative year for Wyco. The company introduced the Sure Speed Electric vibrator that automatically adjusts to maintain the same speed in the mix, regardless of the load placed on the head. This technology provides users with minimal surface defects which in turn reduces patching costs. In January 2011, Wyco acquired the Screed King from Crown Construction Equipment. The acquisition represents an expansion of the divisions’ concrete products. Wyco is continually striving for success within its products and services. Today, Wyco continues to monitor mix and material compatibilities in the concrete industry, and the dynamics of placement by vibration. Wyco's people are proud of the company's long history, and they are excited to continue the company's tradition of innovation, for their industry and for their customers.

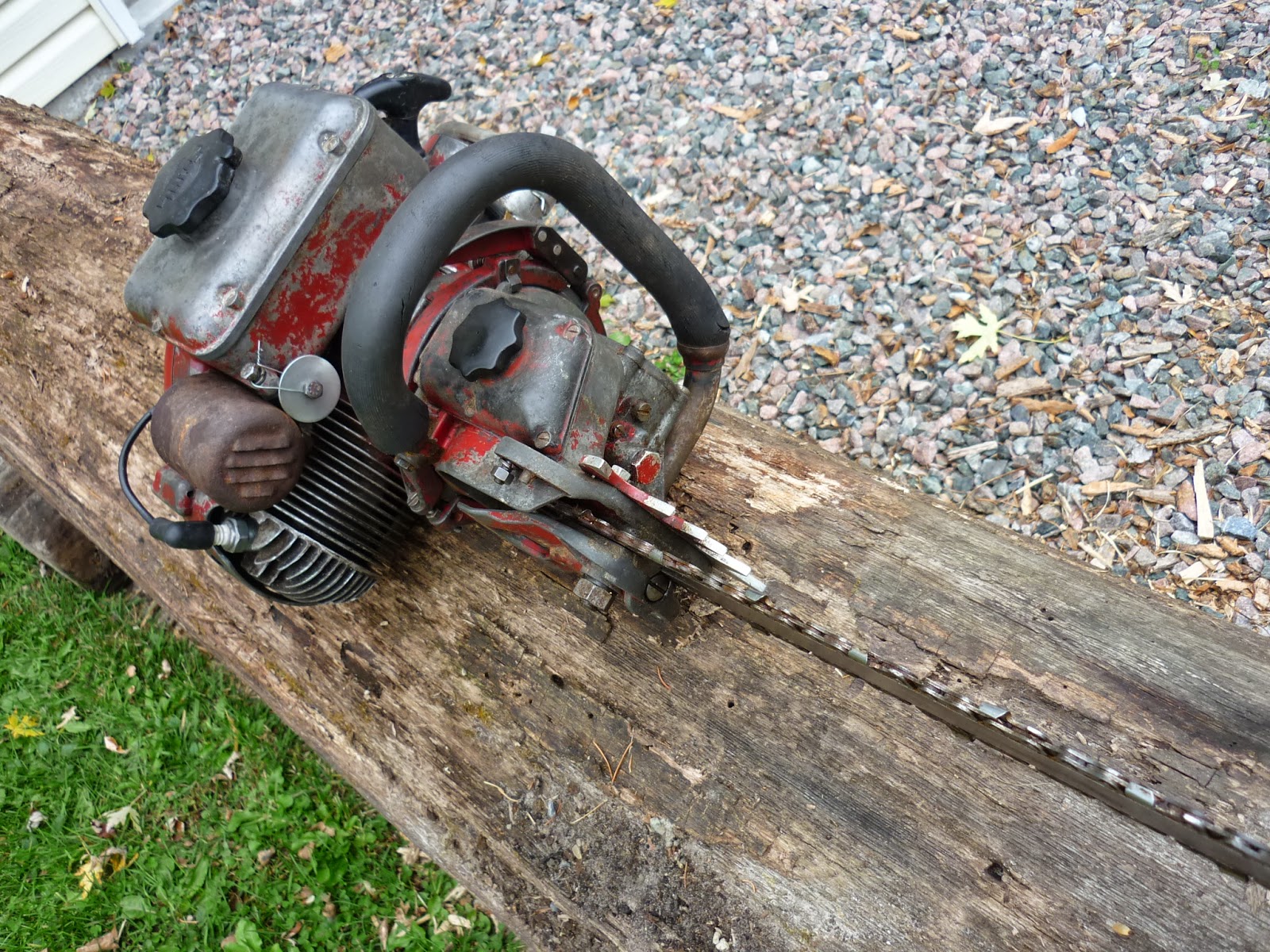

STIHL BLK

BLK stands for Benzin (petrol) - Leicht (light) - Klein (handy, compact).

MANUFACTURED BY: STIHL ANDREAS MASCHINENFABRIK STUTTGART, GERMANY SERIES OR ASSEMBLY NUMBER: YEAR INTRODUCED: 1954 YEAR DISCONTINUED: 1973 ENGINE DISPLACEMENT: 98 ccm (6.0 cu. in.) NUMBER OF CYLINDERS: 1 CYLINDER BORE: 54mm (2.16 in.) PISTON STROKE: 46mm (1.8 in.) CYLINDER TYPE: Aluminum with chrome plated bore INTAKE METHOD: Reed valve MANUFACTURER ADVERTISED H.P.: 3.5 WEIGHT : 11kg (24.2 lbs.) OPERATOR CONFIGURATION: One Man operation HANDLEBAR SYSTEM: Rigid CHAIN BRAKE: none CLUTCH: Centrifugal DRIVE TYPE: Bevel gear transmission CONSTRUCTION: Die cast magnesium MAGNETO TYPE: Bosch MZ/UP 1/115/2 CARBURETOR: Tillotson HL-36A (early models used Bing) MAJOR REPAIR KIT: na MINOR REPAIR KIT: DG-1HL AIR FILTER SYSTEM: STARTER TYPE: Automatic rewind OIL PUMP: Automatic, worm gear driven OPERATING RPM: 5,500 produced chain speed of 11m/sec IGNITION TIMING: 3.0mm before TDC BREAKER POINT SETTING: 0.4mm (0.016 in.) FLYWHEEL/COIL AIR GAP: SPARK PLUG TYPE: Bosch W 225 T 7 SPARK PLUG GAP: 0.51mm (0.020 in.) CRANKSHAFT MAIN BEARINGS: 4 ball type FUEL TANK CAPACITY: FUEL OIL RATIO: 25:1 for first 100 hours, 30:1 thereafter RECOMMENDED FUEL OCTANE: Regular MIX OIL SPECIFICATION: Castrol 2-stroke SAE 40 CHAIN PITCH: 1/2 in. CHAIN TYPE: Chipper BAR MOUNT PATTERN: SHORTEST GUIDE BAR SUPPLIED: 30cm (12 in.) LONGEST GUIDE BAR SUPPLIED: 61cm (24 in.) COLOUR SCHEME: Red enamel

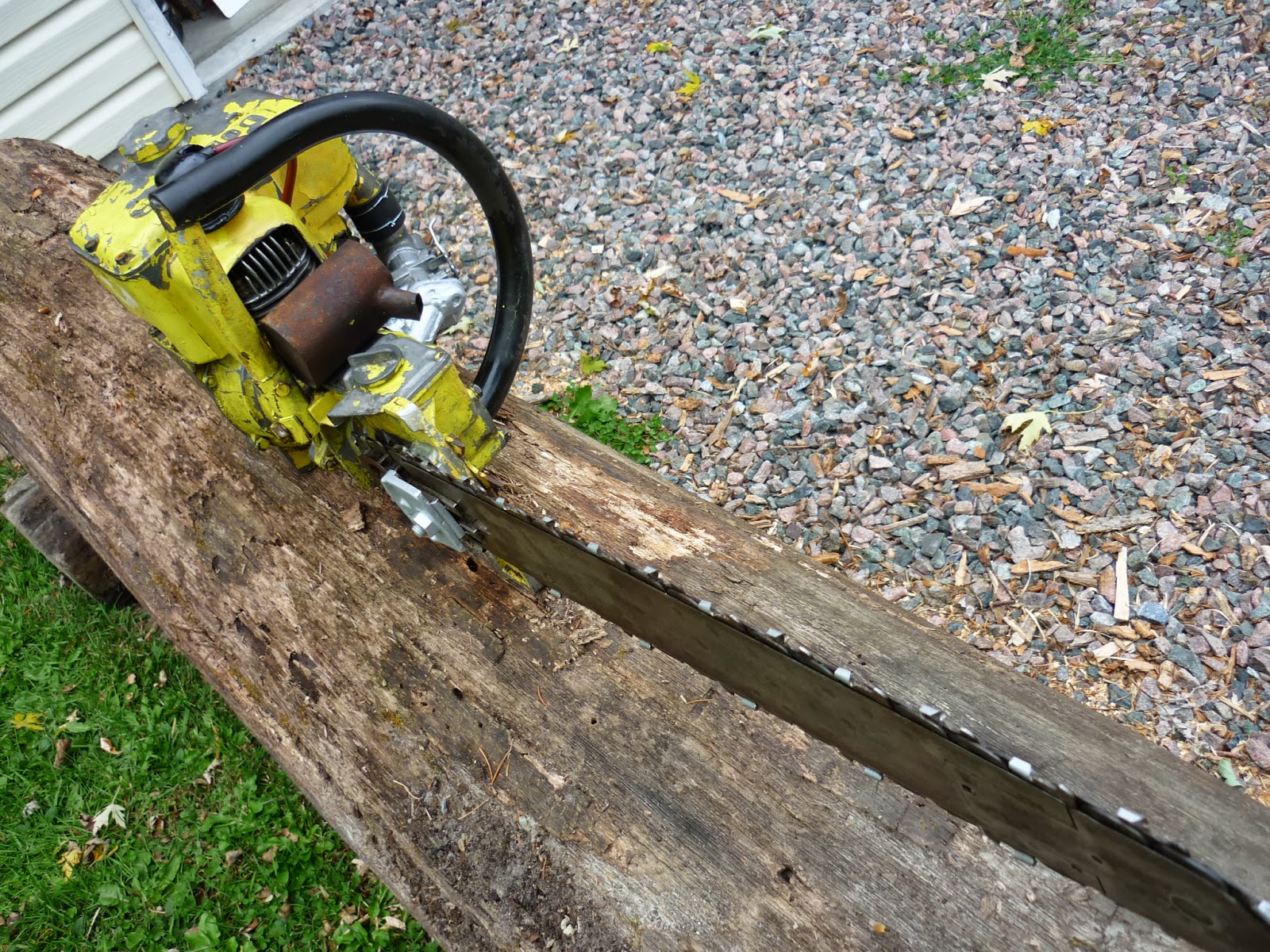

DOLMAR CF

MANUFACTURED BY: DOLMAR Maschinen-Fabrik GmbH & Co. HAMBURG, GERMANY SERIES OR ASSEMBLY NUMBER: YEAR INTRODUCED: 1957 YEAR DISCONTINUED: 1965 ENGINE DISPLACEMENT: 62 ccm (3.78 cu. in.) NUMBER OF CYLINDERS: 1 CYLINDER BORE: PISTON STROKE: CYLINDER TYPE: INTAKE METHOD: MANUFACTURER ADVERTISED H.P.: 3PS WEIGHT : 9.5 kg OPERATOR CONFIGURATION: One Man operation HANDLEBAR SYSTEM: Rigid CHAIN BRAKE: none CLUTCH: Centrifugal DRIVE TYPE: Bevel gear transmission CONSTRUCTION: Sand cast magnesium MAGNETO TYPE: CARBURETOR: MAJOR REPAIR KIT: MINOR REPAIR KIT: AIR FILTER SYSTEM: STARTER TYPE: OIL PUMP: OPERATING RPM: 6,000

PM REDHEAD.

PM REDHEAD....ONE MAN SAW.




Upon bankruptsy of the former IEL company was created the new PM (POWER MACHINERY) company with former employees from Vancouver, Canada.
The Redhead was a very rare saw with limited production(3,600) due to the lack of power and unatractive to buyers. Later models of the WR series upgraded this saw with a more powerful engine (7HP) with a bigger bore and heavy duty gear housing.
This saw is from the initial early version and very rare.

MANUFACTURED BY:PM (Power Machinery Ltd.) VANCOUVER, BRITISH COLUMBIA, CANADA YEAR INTRODUCED: 1950 NUMBER OF CYLINDERS: 1 CYLINDER BORE: 2.250 in (57mm) up to serial 3WR-3599 2.4375 in. (62mm) after serial 3WR-3600 PISTON STROKE: 2.0 in. 50.8mm) CYLINDER TYPE: Chrome plated aluminum INTAKE METHOD: Reed valves (2) MANUFACTURER ADVERTISED H.P.: 5 @ 3,800 rpm WEIGHT : 35.5 lbs. with 20 in. bar & chain 16 kg with 50 cm bar & chain OPERATOR CONFIGURATION: One man or two man operation HANDLEBAR SYSTEM: Rigid CHAIN BRAKE: none CLUTCH: Centrifugal DRIVE TYPE: Bevel gear transmission CONSTRUCTION: Sand cast magnesium MAGNETO TYPE: Wico FWS-18 used up to serial WR1599 Wico FW-2146 used thereafter CARBURETOR: Tillotson MD-44A AIR FILTER SYSTEM: Shredded metal (copper mesh) and brass screen STARTER TYPE: Automatic rewind OIL PUMP: Manual pump OPERATING RPM: 3800 BREAKER POINT SETTING: .020 in. (0.51 mm) FLYWHEEL/COIL AIR GAP: Position is fixed SPARK PLUG TYPE: Champion J8 (PM # 10252) SPARK PLUG GAP: .025 in. (0.63 mm) CRANKSHAFT MAIN BEARINGS: Ball FUEL TANK CAPACITY: 1-1/2 Imperial Quarts FUEL OIL RATIO: 1 pint to 1 gallon Imperial measure RECOMMENDED FUEL OCTANE: Regular MIX OIL SPECIFICATION: SAE 40 or SAE 50 CHAIN PITCH: 9/16 in. CHAIN TYPE: PM with COX design cutter SHORTEST GUIDE BAR SUPPLIED: 14 in. (35.5cm) LONGEST GUIDE BAR SUPPLIED: 60 in. (152cm) COLOUR SCHEME: Red wrinkle finish enamel

PM REDHEAD (POWER MACHINERY) TWO MAN SAW



Early limited production (3,600)underpower two man saw.....very rare saw.

This is a picture of when I acquired the saw ....now it only needs a paint job.





MANUFACTURED BY:PM (Power Machinery Ltd.) VANCOUVER, BRITISH COLUMBIA, CANADA YEAR INTRODUCED: 1950 NUMBER OF CYLINDERS: 1 CYLINDER BORE: 2.250 in (57mm) up to serial 3WR-3599 2.4375 in. (62mm) after serial 3WR-3600 PISTON STROKE: 2.0 in. 50.8mm) CYLINDER TYPE: Chrome plated aluminum INTAKE METHOD: Reed valves (2) MANUFACTURER ADVERTISED H.P.: 5 @ 3,800 rpm WEIGHT : 35.5 lbs. with 20 in. bar & chain 16 kg with 50 cm bar & chain OPERATOR CONFIGURATION: One man or two man operation HANDLEBAR SYSTEM: Rigid CHAIN BRAKE: none CLUTCH: Centrifugal DRIVE TYPE: Bevel gear transmission CONSTRUCTION: Sand cast magnesium MAGNETO TYPE: Wico FWS-18 used up to serial WR1599 Wico FW-2146 used thereafter CARBURETOR: Tillotson MD-44A AIR FILTER SYSTEM: Shredded metal (copper mesh) and brass screen STARTER TYPE: Automatic rewind OIL PUMP: Manual pump OPERATING RPM: 3800 BREAKER POINT SETTING: .020 in. (0.51 mm) FLYWHEEL/COIL AIR GAP: Position is fixed SPARK PLUG TYPE: Champion J8 (PM # 10252) SPARK PLUG GAP: .025 in. (0.63 mm) CRANKSHAFT MAIN BEARINGS: Ball FUEL TANK CAPACITY: 1-1/2 Imperial Quarts FUEL OIL RATIO: 1 pint to 1 gallon Imperial measure RECOMMENDED FUEL OCTANE: Regular MIX OIL SPECIFICATION: SAE 40 or SAE 50 CHAIN PITCH: 9/16 in. CHAIN TYPE: PM with COX design cutter SHORTEST GUIDE BAR SUPPLIED: 14 in. (35.5cm) LONGEST GUIDE BAR SUPPLIED: 60 in. (152cm) COLOUR SCHEME: Red wrinkle finish enamel
