MANUFACTURED BY:POULAN MANUFACTURING CORP.SHREVEPORT, LOUSIANA, U.S.A.
YEAR INTRODUCED:1962
YEAR DISCONTINUED:1963
ENGINE DISPLACEMENT:4.18 cu. in. (68cc)
NUMBER OF CYLINDERS:1
CYLINDER BORE:2.0625 in. (52.3 mm)
PISTON STROKE:1.250 in. (31.75 in.)
CYLINDER TYPE:Aluminum with cast iron sleeve
INTAKE METHOD:Reed valve
MANUFACTURER ADVERTISED H.P.:Not advertised
WEIGHT :18 lbs. powerhead only
OPERATOR CONFIGURATION:One Man operation
HANDLEBAR SYSTEM:Rigid
CHAIN BRAKE:none
CLUTCH:Centrifugal
DRIVE TYPE:Direct
CONSTRUCTION:Sand cast aluminum
MAGNETO TYPE:Wico
CARBURETOR:Tillotson HL series
AIR FILTER SYSTEM:Skinner ribbon element
STARTER TYPE:Fairbanks Morse automatic rewind
OIL PUMP:Manual
OPERATING RPM:6,500
IGNITION TIMING:position stator mid range of mounting holes
BREAKER POINT SETTING:0.020 in. (0.51 mm)
FLYWHEEL/COIL AIR GAP:fixed
SPARK PLUG TYPE:Champion J6J, Autolite A3X
SPARK PLUG GAP:0.025 in. (0.63 mm)
CRANKSHAFT MAIN BEARINGS:Ball and caged needle roller
FUEL TANK CAPACITY:28 oz. (828 ml)
FUEL OIL RATIO:16:1
RECOMMENDED FUEL OCTANE:Regular
MIX OIL SPECIFICATION:Poulan mix oil
CHAIN PITCH:.404 in, 7/16 in. or 3/8 in. optional
CHAIN TYPE:Poulan
SHORTEST GUIDE BAR SUPPLIED:16 in. (40 cm)
LONGEST GUIDE BAR SUPPLIED:28 in. (71 cm)

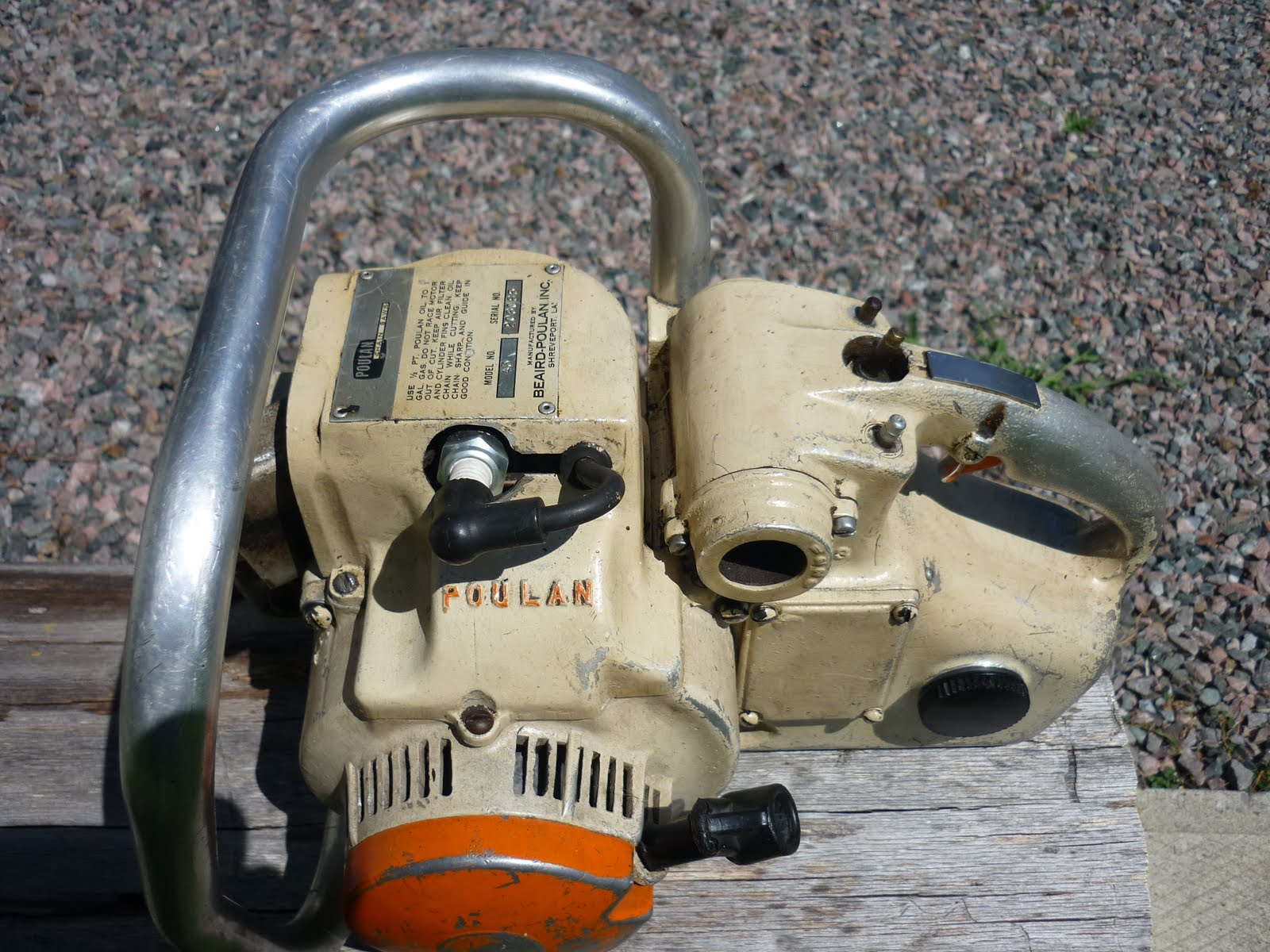

POULAN 43 EARLY MODEL.
MANUFACTURED BY:POULAN MANUFACTURING CORP.SHREVEPORT, LOUSIANA, U.S.A.
YEAR INTRODUCED:1962
YEAR DISCONTINUED:1963
ENGINE DISPLACEMENT:4.18 cu. in. (68cc)
NUMBER OF CYLINDERS:1
CYLINDER BORE:2.0625 in. (52.3 mm)
PISTON STROKE:1.250 in. (31.75 in.)
CYLINDER TYPE:Aluminum with cast iron sleeve
INTAKE METHOD:Reed valve
MANUFACTURER ADVERTISED H.P.:Not advertised
WEIGHT :18 lbs. powerhead only
OPERATOR CONFIGURATION:One Man operation
HANDLEBAR SYSTEM:Rigid
CHAIN BRAKE:none
CLUTCH:Centrifugal
DRIVE TYPE:Direct
CONSTRUCTION:Sand cast aluminum
MAGNETO TYPE:Wico
CARBURETOR:Tillotson HL series
AIR FILTER SYSTEM:Skinner ribbon element
STARTER TYPE:Fairbanks Morse automatic rewind
OIL PUMP:Manual
OPERATING RPM:6,500
IGNITION TIMING:position stator mid range of mounting holes
BREAKER POINT SETTING:0.020 in. (0.51 mm)
FLYWHEEL/COIL AIR GAP:fixed
SPARK PLUG TYPE:Champion J6J, Autolite A3X
SPARK PLUG GAP:0.025 in. (0.63 mm)
CRANKSHAFT MAIN BEARINGS:Ball and caged needle roller
FUEL TANK CAPACITY:28 oz. (828 ml)
FUEL OIL RATIO:16:1
RECOMMENDED FUEL OCTANE:Regular
MIX OIL SPECIFICATION:Poulan mix oil
CHAIN PITCH:.404 in, 7/16 in. or 3/8 in. optional
CHAIN TYPE:Poulan
SHORTEST GUIDE BAR SUPPLIED:16 in. (40 cm)
LONGEST GUIDE BAR SUPPLIED:28 in. (71 cm)
